POWERBOOST® TECHNOLOGY

High pressure water flow in a PowerBoost® pump

Indicates location of waterflow

INNOVATION

IN ACTION

PowerBoost® pump system is an innovation in pump technology that enhances cleaning performance. In a typical pump, as high pressure travels from the pump head to outlet,

a significant amount of pressure is lost due to chemical suction.



With PowerBoost® technology, high water pressure levels trigger a bypass around the venturi nozzle, where chemical suction takes place, reducing pressure loss. Pumps with PowerBoost® deliver higher pressure at the nozzle for improved impact and cleaning performance.



Vibration and heat are also reduced improving the operator's cleaning experience while extending the life of

both pump and engine.

Indicates pump with PowerBoost®

PowerBoost

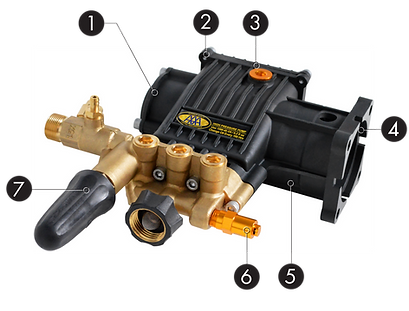

INDUSTRIAL TRIPLEX PUMPS

CX Series

Available in:

  • 3200 PSI @ 3.0 GPM belt driven

  • 3200 PSI @ 3.0 GPM direct driven

  • 4400 PSI @ 4.0 GPM belt driven

  • 4400 PSI @ 4.0 GPM direct driven

  • Includes a siphon tube with filter for chemical cleaning, mounting bolts, shaft kit and oil reservoir breather

C31 Series

INDUSTRIAL TRIPLEX PUMPS

  • Includes a siphon tube with filter for chemical cleaning, mounting bolts, shaft kit and oil reservoir breather

C41 Series

INDUSTRIAL TRIPLEX PUMPS

EW Series

INDUSTRIAL TRIPLEX PUMPS

Industrial Triplex Pumps

  • Includes a siphon tube with filter for chemical cleaning, mounting bolts, shaft kit and oil reservoir breather

Available in:

  • 3800 PSI @ 3.5 GPM brass manifold

  • 4000 PSI @ 3.3 GPM brass manifold

  • 4000 PSI @ 3.5 GPM brass manifold

  • Includes a siphon tube with filter for chemical cleaning, mounting bolts, shaft kit and oil reservoir breather

Available in:

  • 4400 PSI @ 4.0 GPM direct drive

  • 4400 PSI @ 4.0 GPM belt drive

Available in:

  • 3200 PSI @ 2.5 GPM aluminum manifold

  • 3200 PSI @ 2.8 GPM brass manifold

  • 3400 PSI @ 2.5 GPM brass manifold

  • 3600 PSI @ 2.5 GPM brass manifold

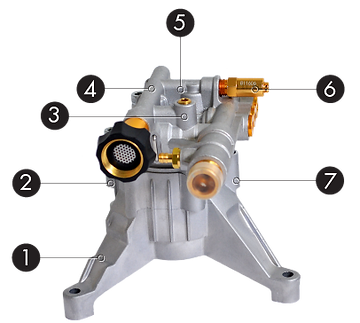

Axial Cam Pumps

Vertical Axial Cam Series

AXIAL CAM PUMPS

  • Includes a siphon tube with filter for chemical cleaning, mounting bolts and shaft kit

Available in:

  • 2400 PSI @ 2.0 GPM

  • 2800 PSI @ 2.3 GPM

  • 3000 PSI @ 2.4 GPM

  • 3100 PSI @ 2.5 GPM

with brass manifold



Horizontal Axial Cam Series

AXIAL CAM PUMPS

Available in:

  • 3000 PSI @ 2.4 GPM with clear anodized aluminum manifold

  • 3200 PSI @ 2.5 GPM with black anodized aluminum manifold

  • 3400 PSI @ 2.5 GPM

      with brass manifold

  • Includes a siphon tube with filter for chemical cleaning, mounting bolts and shaft kit

Pump Components

PUMP COMPONENTS

Downstream Chemical Injector Assembly:

with Siphon Tube and Filter

- Brass housing rated up to 180° F

- Adjustable chemical Injection

- 3/8" QC plug & socket with 1/4" barb

- 4' Chemical pick-up hose with filter

  • Part# 80194, 3500 PSI @ 3.0 - 4.0 GPM

  • Part# 80195, 3500 PSI @ 4.0 - 5.5 GPM

  • Part# 80196, 3500 PSI @ 5.5 - 10.8 GPM
